The TW021AQ series is a water-based high-performance flexographic high-temperature retort composite ink, suitable for both general use and boiling and retort fields. It features excellent hygiene performance and meets environmental protection requirements.

Product uses and features

1.In the field of inner printing lamination, it can be widely used from non-boiling applications to boiling and steaming applications (boiling and steaming applications are of two-liquid type).

2.It has stable recompatibility for a wide range of substrates for processing OPP, PET, NY, and PVDC coated films.

3.High-concentration design, with excellent printing texture;

4.It has excellent printability such as plate staining and clogging properties.

5.Maintain a clean and hygienic working environment with minimal residual solvents and clean packaging materials.

6.Base ink is non-hazardous and highly safe, not subject to fire protection laws.

Reference color

R63 white, F23 yellow, F121 red, R39 blue, R92 black, R235 yellow, R262 yellow, 3 red, F187 red, F523 orange, R518 orange, R79 grass, Z821 purple, R diluent F: Boiling grade Z, R: Steaming grade

Diluent and printing viscosity

Viscosity: 12~16 s   ※ 4#Charn Cup

Printing viscosity can be adjusted accordingly according to the pattern of the printing plate, anilox roller, printing speed and printing effect.

Instructions for the Use of Curing agent

Curing agent addition: HD 350 curing agent addition amount: 1-3%

Performance improvement: Increase composite strength, temperature resistance, adhesion, etc

Disposal of old ink: Leftover ink with added curing agent should not be stored for a long time. When using it again, it needs to be mixed with new ink and the curing agent should be added again. Pay attention to anti-sticking.

Notes

1. When TW021AQ series ink is stored at low temperatures, it has poor freezing and fluidity. Please do not store in places below 0℃.

2.Although base ink, solvent and curing agent are all non-hazardous substances, diluted ink belongs to the second category of petroleum (water-soluble) or ethanol substances of the fourth category of hazardous substances under the Fire Protection Law, so it is treated as a hazardous substance.

3.HD 350 curing agent is stable at room temperature and can be stored for six months at room temperature. However, due to the influence of storage environment and usage conditions, the active ingredients may lose their effectiveness.

Environmental protection regulations

1Complies with the requirements of regulations such as GB4806.14, GB4806.1, and GB31603;

2.Complies with the requirements of regulations such as ROHs, REACH, and EN71-3.

3.Compliant with QB/T 2825 "Flexographic Water-based ink"。

4.This product complies with the NL rules formulated by the Japan Printing Ink Association.

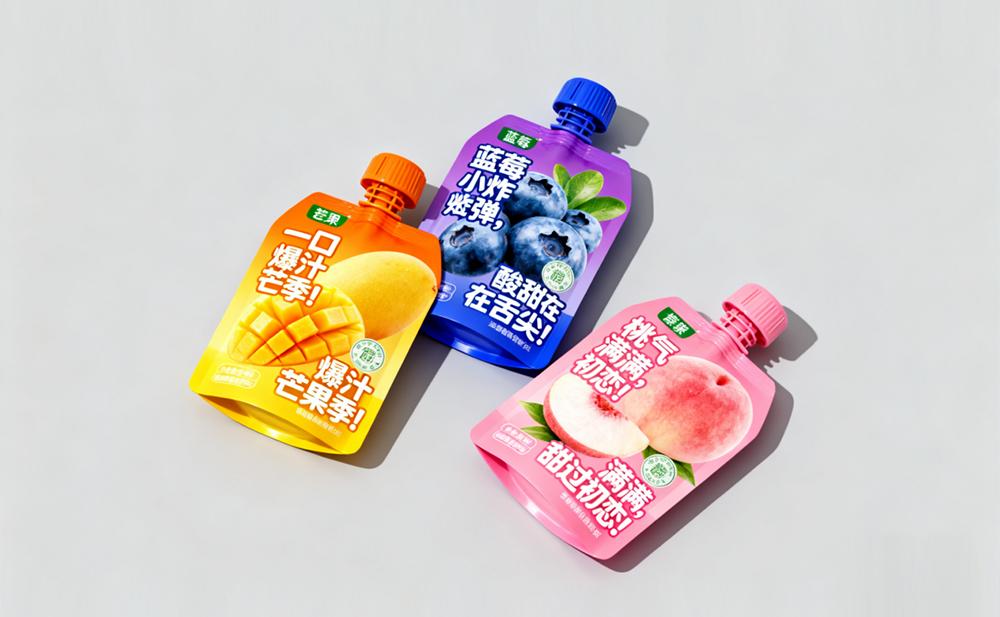

Product application cases
