The AU series is a water-based, general-purpose, high-performance retort composite ink that can be applied from general uses to boiling and retort fields. It features excellent hygiene performance and meets environmental protection requirements.

Product uses and features

1.It can be widely used from general purposes to boiling and steaming fields (the boiling and steaming application is of 2-liquid type).

2.It has stable re-suitability for processing numerous substrates such as OPP, PET, NY, etc

3.The high-concentration design ensures a good printing texture even when used for shallow plates.

4.It has excellent ink scraping and transfer performance, and can achieve good lamination results when combined with dry lamination or solvent-free lamination.

5.It can have a clean working environment free of solvent odor, and when combined with solvent-free lamination, it can achieve extremely clean packaging with high hygiene.

Reference color

R63 White, F23 Yellow, F121 red, R39 blue, R92 Black, R235 yellow, R262 Yellow, F523 orange, R515 orange, R79 grass, Z821 purple, R ink, R diluent

F: Boiling grade Z, R: Steaming grade

Diluent and printing viscosity

white ink: 13~15 s, color ink: 14~16 s  ※ 3#Charn CupThe ratio of printing viscosity and thinner can be adjusted accordingly according to the printing pattern, drying capacity, printing speed and printing effect.

Instructions for the Use of Curing agent

Curing agent addition: HD 350 curing agent addition amount: 1-3%

Performance improvement: Increase composite strength, temperature resistance, adhesion, etc

Disposal of old ink: Leftover ink with added curing agent should not be stored for a long time. When using it again, it needs to be mixed with new ink and the curing agent should be added again. Pay attention to anti-sticking.

Notes

1. When AU series ink is stored at low temperatures, it has poor freezing and fluidity. Please do not store in a place below 0℃.

2.Although base ink, solvent and curing agent are all non-hazardous substances, diluted ink belongs to the second category of petroleum (water-soluble) or ethanol substances of the fourth category of hazardous substances under the Fire Protection Law, so it is treated as a hazardous substance.

3.HD 350 curing agent is stable at room temperature and can be stored for six months at room temperature. However, due to the influence of storage environment and usage conditions, the active ingredients may lose their effectiveness.

Environmental protection regulations

1Complies with the requirements of regulations such as GB4806.14, GB4806.1, and GB31603;

2.Complies with the requirements of regulations such as ROHs, REACH, and EN71-3.

3.Complies with GB/T 26394 "Water-based Film Gravure Composite Ink".

4.This product complies with the NL rules formulated by the Japan Printing Ink Association.

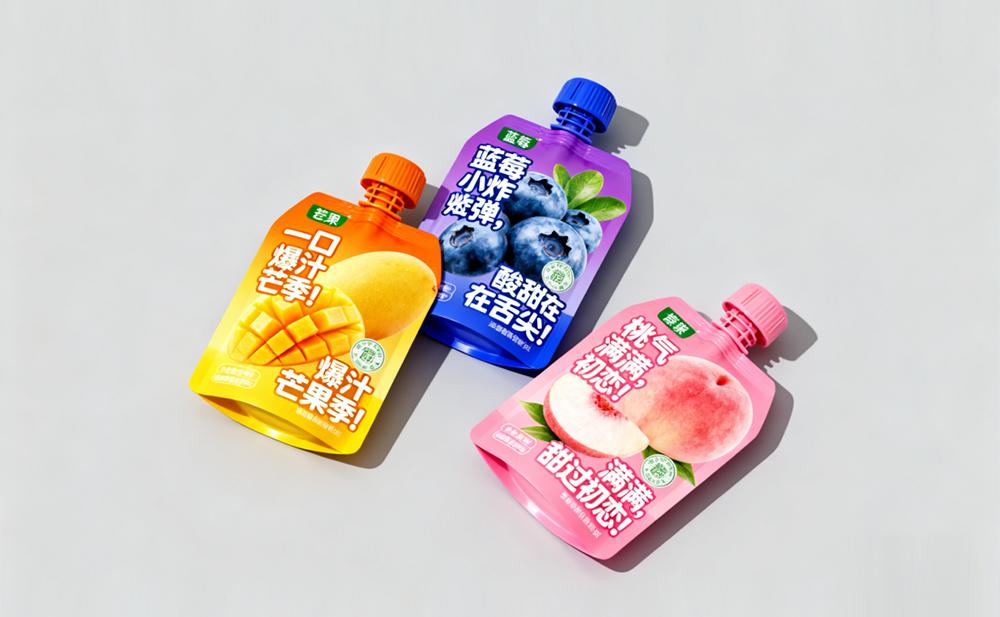

Product application cases
