MX-H is a benzene-free, ketone-free, monoester one-component high-performance high-temperature cooking composite ink. It can be used in a single component without a hardener, ranging from general food applications to boiling and cooking fields.

Product uses and features

1)There is very little residual solvent in printed materials using only esters as formulation solvents.

2)It has good ester solubility, and the printing solvent is a single ester solvent. The operation is simple, easy to recycle, and the usage cost is low.

3)It features excellent ink application performance and layer reproduction in high-gloss areas, as well as superior ink scraping performance, making it particularly suitable for high-speed printing adaptability.

5)It is applicable to almost all films such as OPP, PET and nylon.

6)It can be used in general, boiling and steaming fields, and can be used as a single component.

7)It is widely used in the packaging of food, medical products, hygiene products, etc.

8)We can provide relevant base inks that comply with the SWISS Ordinance.

Reference color

R63 White, F121 red, F23 yellow, R39 blue, R92 Black, 3 Red S, R162 red, R181 Red, 187 red, R235 Yellow C, R262 Yellow (concentrated), F523 orange, R515 orange, 518 orange, F572 Peony, 471 Peony, Z821 purple R79 green, R-toned ink, tinted silver, lapis gold and other base colors. Special color samples can be prepared according to user requirements.

Diluent and printing viscosity

white ink: 13~15 s, color ink: 14~16 s  ※ 3#Charn CupThe ratio of printing viscosity and thinner can be adjusted accordingly according to the printing pattern, drying capacity, printing speed and printing effect.

Instructions for the Use of Curing agent

MX series inkIt can be used for two-component purposes to enhance the performance of the ink. Curing agent addition: TCS-4394 addition amount: 1-3%

Performance improvement: Increase composite strength, temperature resistance, adhesion, etc

Disposal of old ink: Leftover ink with added curing agent should not be stored for a long time. When using it again, mix it with new ink (old ink <30%) and add the curing agent again. Pay attention to reverse adhesion.

Notes

1.Standard colors such as S3 red, S16 red and gold and silver can only be used for general packaging purposes and cannot be used for any boiling (including pasteurization), steaming or boiling purposes.

2When printing on hygroscopic films such as S3 red and S16 red nylon, there is a risk of discoloration or migration due to the influence of water. According to the post-processing and storage conditions of the product, especially for products with water on the surface, please avoid using them.

3.When mixing light colors, there is a risk of discoloration during heat sealing. It is not recommended for steaming or boiling purposes.

4.When used for PT cellophane and nylon, 3% curing agent is required.

5. There are restrictive regulations on the use of the base color ink according to the purpose. The marks indicating the applicable scope are marked before the color match number. "S" indicates the non-boiling grade, and "F" indicates the boiling grade.

Environmental protection regulations

1Complies with the requirements of regulations such as GB4806.14, GB4806.1, and GB31603;

2.Comply with the requirements of regulations such as ROHs, REACH, and EN71-3;

3.Comply with the standard QB/T2024 "Gravure Plastic Film Composite Ink". 4. This product complies with the NL rules formulated by the Japan Printing Ink Association.

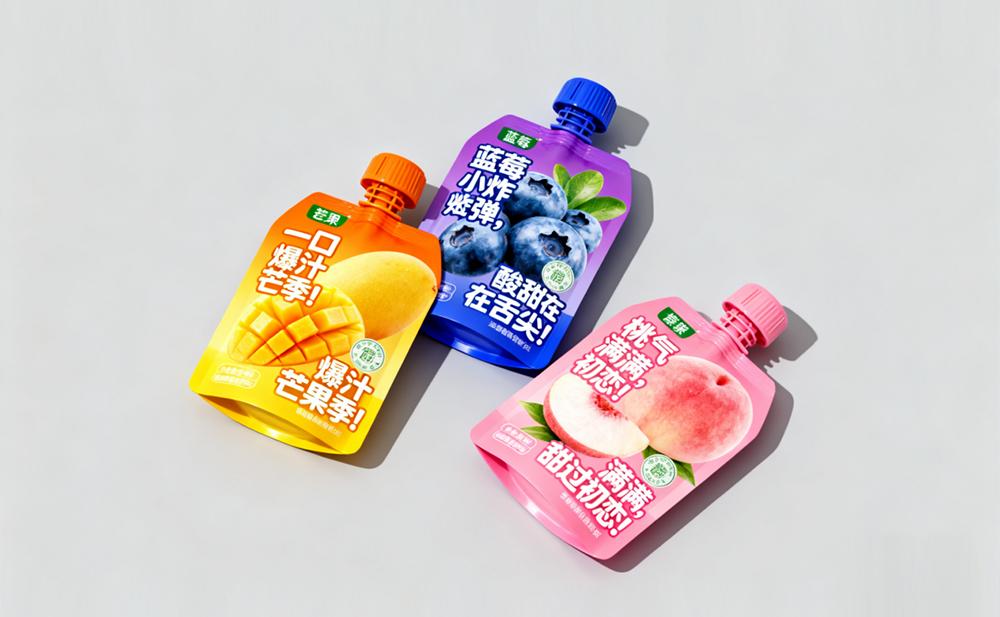

Product application cases
