Performance Characteristics: Clear patterns, no clogging of the mesh, alcohol-resistant, high hardness, and good scratch resistance
Applicable Substrate: Treated PP, PE and untreated PP
Detailed
Brief introduction

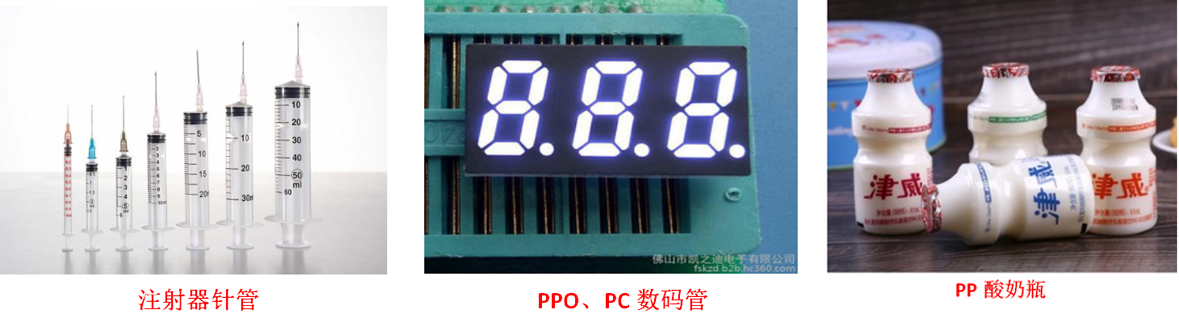

The SSHPP series has excellent adhesive force for Treated PP, PE and untreated PP materials, and its oil resistance and alcohol resistance are particularly good. It is used for untreated and treated polypropylene films, hard plates and products of various shapes, with excellent adhesion and scratch resistance, and the printing effect is also extremely good. It is mostly used for printing on materials such as syringes, digital tubes and yogurt bottles.
Features
1. It has good adhesive force for PP material, high hardness and excellent scratch resistance.
2. Suitable for screen printing and roller printing syringes, it does not clog the screen, dries quickly and the patterns are clear.
Drying condition
Ink type: Evaporative drying type
Drying time: 30-60 minutes at room temperature
Heating and drying time: 10 minutes at 80℃
Ink performance
Printing conditions
Ink model: SSHPP-911 Black
Printing substrate: PP
Screen: 300 mesh
Drying conditions: 80℃ for 10 minutes
Notes
When printing PPO and PC digital tubes, please use SSHPP-613 white and SSHPP-5148A black to prevent the ink from coming into contact with the epoxy adhesive, which may cause the epoxy adhesive to turn yellow.
When printing syringes, please use SSHPP-5122A black screen printing ink and SSHPP-5144A black and SSHPP-5213A black roller printing ink.
Environmental friendliness
1. Comply with the requirements of regulations such as ROHs, REACH, ASTM F963, EN71-3(except gold and silver), California 65, etc., and meet the control requirements of VOCs in GB 38507-2020.
2. The ink does not meet the control requirements of MOAH, MOSH and PAHs.
SSHPP series setting colors lists
Product name |
Lightfastness |
Product name |
Lightfastness |
|
SSHPP-611 white |
5 |
SSHPP-911 black |
5 |
|
SSHPP-021 yellow |
3 |
SSHPP-214 yellow |
4 |
|
SSHPP-141 red |
5 |
SSHPP-151 red |
5 |
|
SSHPP-003 red |
3 |
SSHPP-112 red |
3-4 |
|
SSHPP-083 purple |
5 |
SSHPP- Ink blending oil |
3 |
|
SSHPP-391 blue |
5 |
SSHPP-791 green |
5 |
5: 720 hours without fading 4: 360 hours without fading
3: 180 hours without fading 2: 130 hours without fading
1: 90 hours without fading
The above data is obtained from multiple experiments by our company. Our company guarantees the authenticity of the information provided. In view of the differences in printing materials and construction conditions, our company cannot make any commitment.
Our company reserves the right to improve its own products. Any changes to its specifications will not be notified in advance.
